Aluminum CO2 cylinders, wide range from water volume 2L to 50L, outer diameter 108mm to 250mm. Made from Aluminum alloy 6061, successful cycling test 120000 times.
Application: beverage field, including keg, carbonated CO2 and draft brewing.
Alsafe Company supply the products for the local branches of and Pepsi Company all the time.
The outstanding serials products meet all of your requirement on food grade CO2 cylinder tank.
Product details:
Application: beverage field, including keg, carbonated CO2 and draft brewing.
Alsafe Company supply the products for the local branches of and Pepsi Company all the time.
The outstanding serials products meet all of your requirement on food grade CO2 cylinder tank.
Product details:
| No | Specification | Outer Diameter | Water Volume | Length | Weight | Working pressure | ||||
| mm | in | litre | cu in | mm | in | kg | lb | bar | ||
| 1 | LW-60-0.5-20-H | 60 | 2.4 | 0.5 | 30.5 | 285 | 11.2 | 0.59 | 1.3 | 200 |
| 2 | LW-75-0.7-15-H | 75 | 3 | 0.7 | 42.7 | 295 | 11.6 | 0.85 | 1.9 | 150 |
| 3 | LW-82-0.7-15-H | 82 | 3.2 | 0.7 | 42.7 | 235 | 9.2 | 0.9 | 2 | 150 |
| 4 | LW-89-1.0-15-H | 89 | 3.5 | 1.0 | 61.0 | 269 | 10.59 | 1.2 | 2.6 | 150 |
| 5 | LW-89-1.4-15-H | 89 | 3.5 | 1.4 | 85.4 | 345 | 13.6 | 1.4 | 3.1 | 150 |
| 6 | LW-108-1.0-15-H | 108 | 4.3 | 1.0 | 61.0 | 210 | 8.3 | 1.3 | 2.9 | 150 |
| 7 | LW-108-1.4-15-H | 108 | 4.3 | 1.4 | 85.4 | 264 | 10.4 | 1.6 | 3.5 | 150 |
| 8 | LW-108-2.0-15-H | 108 | 4.3 | 2.0 | 122.0 | 346 | 13.6 | 2.1 | 4.6 | 150 |
| 9 | LW-108-2.5-15-H | 108 | 4.3 | 2.5 | 152.5 | 413 | 16.3 | 2.5 | 5.5 | 150 |
| 10 | LW-120-2.0-15-H | 120 | 4.7 | 2.0 | 122.0 | 320 | 12.6 | 2.7 | 5.9 | 150 |
| 11 | LW-120-2.5-15-H | 120 | 4.7 | 2.5 | 152.5 | 369 | 14.5 | 3 | 6.6 | 150 |
| 12 | LW-120-2.8-15-H | 120 | 4.7 | 2.8 | 170.8 | 398 | 15.7 | 3.2 | 7 | 150 |
| 13 | LW-120-3.2-15-H | 120 | 4.7 | 3.2 | 195.2 | 437 | 17.2 | 3.5 | 7.7 | 150 |
| 14 | LW-140-4.0-15-H | 140 | 5.5 | 4.0 | 244.0 | 420 | 16.5 | 4.2 | 9.3 | 150 |
| 15 | LW-140-5.0-15-H | 140 | 5.5 | 5.0 | 305.0 | 500 | 12 | 4.9 | 10.8 | 150 |
| 16 | LW140-6.0-15-H | 140 | 5.5 | 6.0 | 366.0 | 580 | 22.8 | 5.6 | 12.3 | 150 |
| 17 | LW140-8.0-15-H | 140 | 5.5 | 8.0 | 488.0 | 741 | 39.2 | 7.2 | 15.9 | 150 |
| 18 | LW140-5.0-20-H | 140 | 5.5 | 5.0 | 305.0 | 525 | 20.7 | 6.3 | 13.9 | 200 |
| 19 | LW140-6.0-20-H | 140 | 5.5 | 6.0 | 366.0 | 652 | 25.7 | 7.98 | 17.6 | 200 |
| 20 | LW-159-10.0-15-H | 159 | 6.3 | 10.0 | 610.0 | 730 | 28.7 | 8.8 | 19.4 | 150 |
| 21 | LW-184-9.0-20-H | 184 | 7.2 | 9.0 | 549.1 | 575 | 22.6 | 12 | 26.4 | 200 |
| 22 | LW-184-10-20-H | 184 | 7.2 | 10.0 | 610.0 | 620 | 24.4 | 12.9 | 28.4 | 200 |
| 23 | LW-184-11-20-H | 184 | 7.2 | 11.0 | 671.1 | 665 | 26.2 | 14.2 | 31.3 | 200 |
| 24 | LW-184-12-20-H | 184 | 7.2 | 12.0 | 732.2 | 710 | 28 | 15.4 | 33.9 | 200 |
| 25 | LW-203-12-15-H | 203 | 8 | 12.0 | 732.2 | 567 | 22.3 | 11.8 | 26 | 150 |
| 26 | LW-203-20-15-H | 203 | 8 | 20.0 | 1220.3 | 873 | 34.4 | 17 | 37.4 | 150 |
| 27 | LW-203-21.3-15-H | 203 | 8 | 21.3 | 1299.6 | 962 | 37.9 | 19.9 | 43.8 | 150 |
| 28 | LW-204-12-20-H | 204 | 8 | 12.0 | 732.2 | 610 | 24 | 16.5 | 36.3 | 200 |
| 29 | LW-204-15-20-H | 204 | 8 | 15.0 | 915.2 | 735 | 28.9 | 18.7 | 41.2 | 200 |
| 30 | LW-204-20-20-H | 204 | 8 | 20.0 | 1220.3 | 940 | 37 | 23.4 | 51.5 | 200 |
| 31 | LW-232-29.5-15-H | 232 | 9.1 | 29.5 | 1799.9 | 994 | 39.1 | 30.2 | 66.5 | 150 |
| 32 | LW-232-30.0-15-H | 232 | 9.1 | 30.0 | 1830.4 | 1010 | 39.8 | 30.5 | 67.2 | 150 |
| 33 | LW-232-33.4-15-H | 232 | 9.1 | 33.4 | 2037.8 | 1126 | 44.3 | 31.3 | 68.9 | 150 |
| 34 | LW-232-40.0-15-H | 232 | 9.1 | 40.0 | 2440.5 | 1340 | 52.8 | 36.5 | 80.4 | 150 |
| 35 | LW-232-20.0-20-H | 232 | 9.1 | 20.0 | 1220.3 | 750 | 29.5 | 26.9 | 59.3 | 200 |
| 36 | LW-232-26.0-20-H | 232 | 9.1 | 26.0 | 1586.3 | 921 | 36.3 | 30.7 | 67.6 | 200 |
| 37 | LW-232-30.0-20-H | 232 | 9.1 | 30.0 | 1830.4 | 1076 | 43.9 | 36.4 | 80.2 | 200 |
| 38 | LW-232-31.5-20-H | 232 | 9.1 | 31.5 | 1921.9 | 1096 | 43.1 | 38 | 83.7 | 200 |
| 39 | LW-232-40.0-20-H | 232 | 9.1 | 40.0 | 2440.5 | 1365 | 53.7 | 44.1 | 97.1 | 200 |
| 40 | LW-250-40.0-15-H | 250 | 9.8 | 40.0 | 2440.5 | 1150 | 45.3 | 36.7 | 80.8 | 150 |
| 41 | LW-250-46.4-15-H | 250 | 9.8 | 46.4 | 2831.0 | 1305 | 51.4 | 38.7 | 85.2 | 150 |
| 42 | LW-250-47.5-15-H | 250 | 9.8 | 47.5 | 2898.1 | 1340 | 52.8 | 42 | 92.5 | 150 |
| 43 | LW-250-50.0-15-H | 250 | 9.8 | 50.0 | 3050.6 | 1590 | 62.6 | 39 | 85.9 | 150 |
| 44 | LW-250-40.0-20-H | 250 | 9.8 | 40.0 | 2440.5 | 1227 | 48.3 | 46.3 | 101.9 | 200 |
| 45 | LW-250-50.0-20-H | 250 | 9.8 | 50.0 | 3050.6 | 1500 | 59.1 | 56 | 123.3 | 200 |
| Items | Overview |
| Materials | High strength Aluminum alloy 6061 |
| High standard of safety | Hydro-test before delivery |
| Lightweight | 40% Weight-saving compared with steel cylinder |
| Strong and thick wall | Design to ensure anti-pressure strength |
| Smart appearance | Brushed Aluminum body and need low maintenance |
| Service pressure | 150bar |
| Test pressure | 250bar |
| Technical standard | EN, DOT,ISO upon customers' demand |

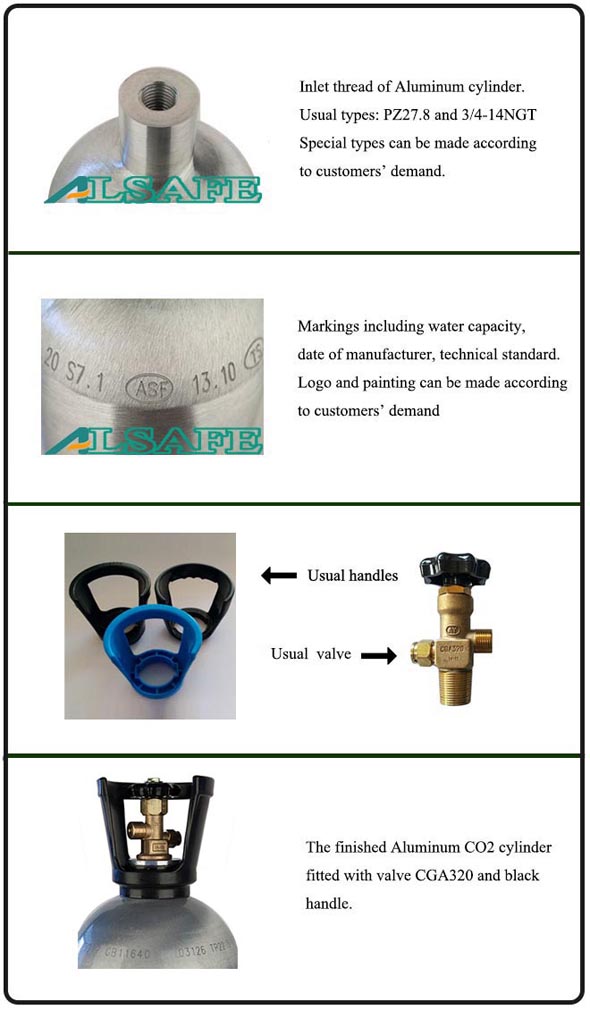

| Fitted valve | CGA320 or upon customers' demand. |
| Life-span of product | 15 years |
| Recertification period | 5 years |
| Delivery time | 6 days to 30 days upon deposit. Shipping empty. |
