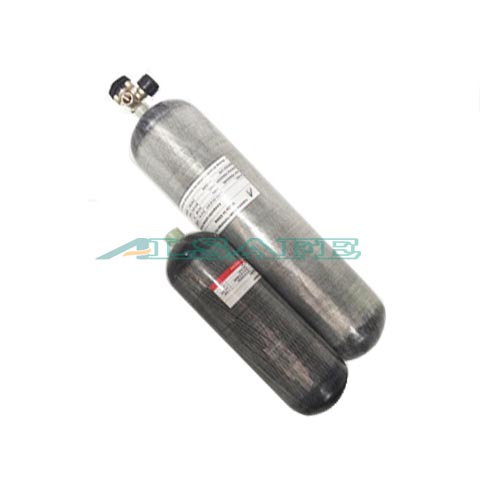

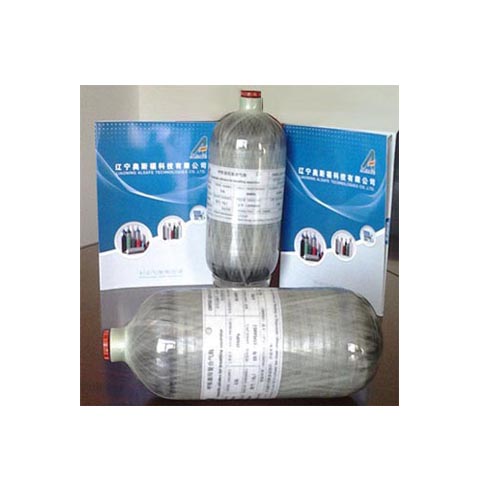

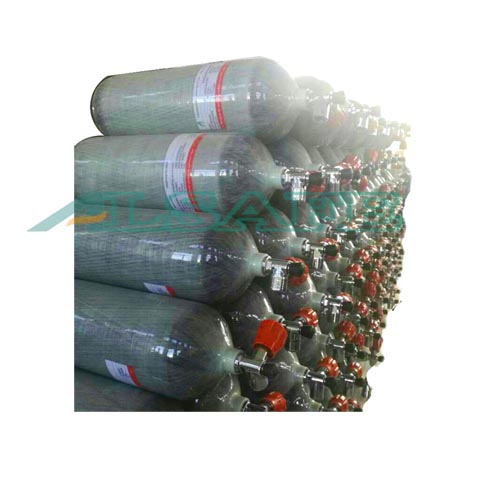

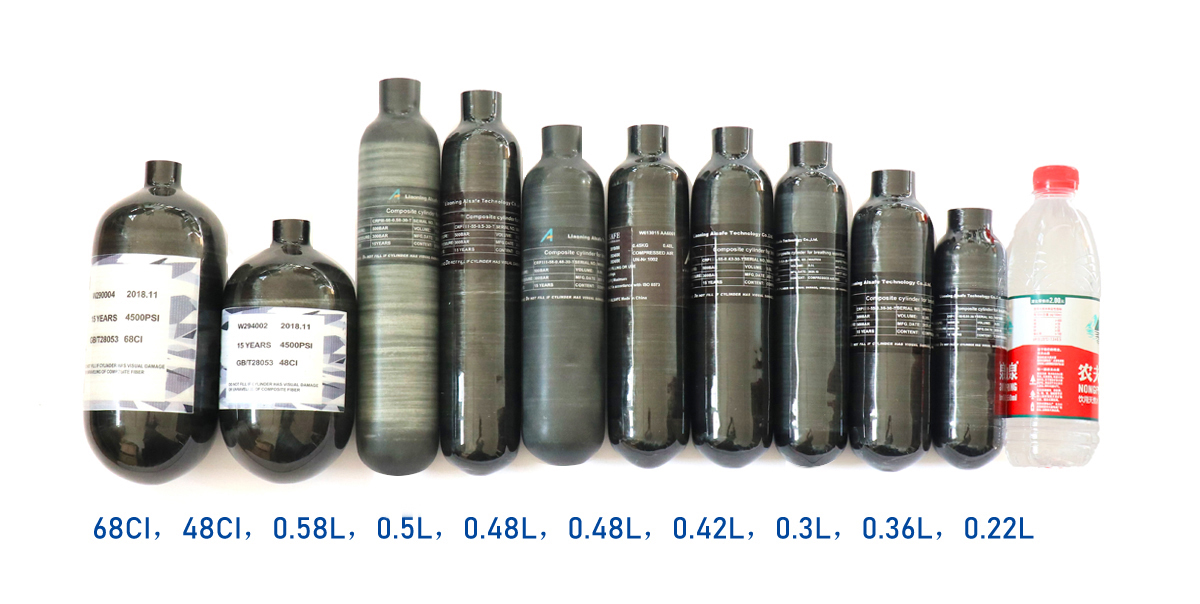

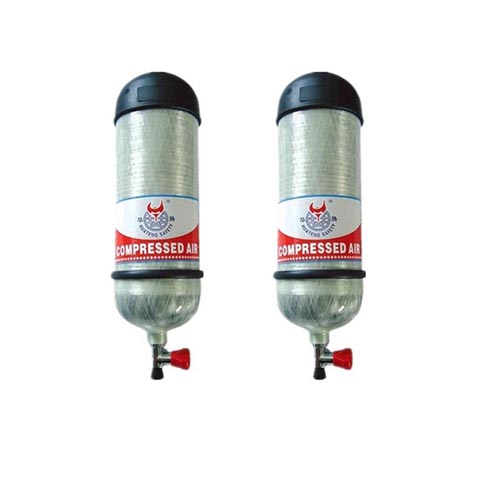

Carbon fiber composite air cylinder tank, broad range from 0.35L to 20L water capacity, service pressure 3000psi and 4500psi. Extensively adopted in SCBA, CNG and paintball, pcp game.
Top standard of safety, ultra lightweight, superior strength.
Durable performance, resist high temperature.
Variety of accessories available for choice.
Top standard of safety, ultra lightweight, superior strength.
Durable performance, resist high temperature.
Variety of accessories available for choice.
| Items | Overview |
| Materials consist of | Aluminum inner shell, fully wrapped with high strength carbon fiber, glass fiber and epoxy resin. |
| Ultra standard of safety | Cycling test 10000 times |
| Ultra lightweight | 5 times lighter than comparable steel product. |
| Strong and thick wall | Design to ensure anti-pressure strength |
| Test pressure | 1.7 times of service pressure |
| Service pressure | 2900psi, 4500psi |
| Technical standard | EN, DOT, ISO upon customers' demand |
| Color of product | Grey |
| Variety of accessories | Fitted upon customers' demand. |
| Application | Firefighting, paintball and pcp sports, SCBA etc. |
| Life-span of product | 15 years |
| Recertification period | 5 years |
| Delivery time | 6 days to 30 days upon deposit. Shipping empty. |
| Type | Outer Diameter | Water Volume | Length | Weight |
Working Pressure |
| (mm) | (litre) | (mm) | (kg) | (psi) | |
| CRPIII-56-0.35-30-T | 56 | 0.35 | 280 | 0.6 | 4500 |
| CRPIII-56-0.45-30-T | 56 | 0.45 | 290 | 0.9 | 4500 |
| CRPIII-56-0.5-20-T | 56 | 0.5 | 300 | 0.6 | 2900 |
| CRPIII-85-1.0-30-T | 85 | 1 | 292 | 0.8 | 4500 |
| CRPIII-96-2.0-30-T | 96 | 2 | 433 | 1.5 | 4500 |
| CRPIII-114-3.0-30-T | 114 | 3 | 446 | 2.1 | 4500 |
| CRPIII-135-3.0-30-T | 135 | 3 | 340 | 2.1 | 4500 |
| CRPIII-137-4.7-30-T | 137 | 4.7 | 492 | 3 | 4500 |
| CRPIII-145-6.0-30-T | 157 | 6 | 470 | 3.6 | 4500 |
| CRPIII-145-6.8-30-T | 157 | 6.8 | 528 | 4.1 | 4500 |
| CRPIII-161-9.0-30-T | 161 | 9 | 560 | 5.2 | 4500 |
| CRPIII-208-12.0-30-T | 208 | 12 | 570 | 7.6 | 4500 |
| CRPIII-208-20.0-30-T | 208 | 20 | 850 | 9 | 4500 |
